Kerberos delegation

This page provides you a detailed approach to configure Kerberos delegation. It also provides details of configurable parameters, prerequisites, and troubleshooting.

If you are running against Analysis Services (tabular or multidimensional), there are other ways to set up Kerberos Delegation. These options don't require Kerberos Delegation to be set up. To use this approach, the server connection would be made using the Application Pool user and make use of the EffectiveUser connection property to impersonate the Anaplan XLWeb user within Analysis Services itself.

To do this, you need to ensure the Application Pool is running as a domain account and that account has Administrator access on the server. Then set these ApplicationSettings in the Anaplan XL web.config:

<add key="StopImpersonatingDuringDataAccess" value="true"/> <add key="ForceAnalysisServicesUser" value="true"/>

The first setting makes sure the application pool user is used for the data connection. The second setting makes the EffectiveUser be set to the AnaplanXLWeb user.

Additionally, update this file:

\inetpub\wwwroot\xlcubedweb\bin\xlcubed.data.analysisservices.xml

Ensure the setting enforceuseridentity is set to false:

<connections keepopen="False" keepsession="True" usenativecom="True" useconnectionpooling="False" enforceuseridentity="False" />

Depending on your network setup, the application pool and SQL Server Analysis service users may need to log in. They'll need to be added to the Windows Authorization Access Group built-in Domain group.

If Anaplan XL Reporting Web is installed on a different server than the database, you will need to set up delegation. The Website must be set up to use Windows Authentication.

If you have this type of setup and Delegation isn't configured, then you will receive a message such as "Server is unavailable" for Analysis Services or a "(null) user" error for SQL Server when trying to access published reports.

Most corporations have a standard setup for Delegation, and the Domain Administrators would handle this. This is a guide to how to configure Delegation in the simplest case but is by no means a best practice guide as each domain setup and infrastructure can vary enormously.

There are also many other things that can affect how Delegation works well. These include the network, client security settings, and software. The guide will assume that all ‌clients will use Internet Explorer. There's only one domain and everything is on the same network. There are no firewalls or routers that could block Delegation requests.

Before starting, make sure AnaplanXLWeb is working well. This includes loading a report. If it doesn't work, the server won't be available.

Ensure the Anaplan XL Website Application pool is running as either NetworkService or a specifically created domain user and then only "Windows Authentication" and "ASP.net Impersonation" are enabled in the Authentication settings of the website.

Check/clear any existing SPNs for the servers — if any already exist and they're invalid, then the configuration won't work.

Before configuring Delegation, you will need to know:

If the User IDs are domain accounts, then the format needed is: domain\user.

If the service or application pool is set to run under NetworkService, then use the server name: server.

You will need to be a Domain Administrator to perform all of the configuration steps.

The first step is to enable delegation on ALL the machines involved in the process:

• WebServer
• ASServer
• SQLServer

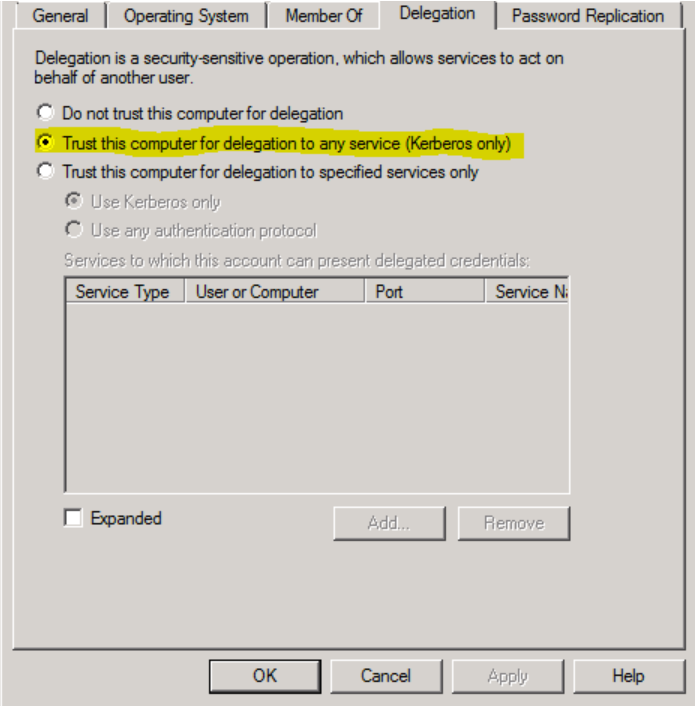

This is a setting for a domain. You can set it up using the Active Directory Users and Computers tool, which is part of the Microsoft Admin Tools Pack. It'd normally be on the Domain Controller.

If there is more than one domain controller, then you would need to either start a propagate or wait for this change to be applied to all the domain controllers.

The Service Principal Names (SPNs) are set using a command-line tool: setspn. This needs to be run in an Administrator Command Prompt with an account that has Domain Admin privileges. It needs to be run for both the server name and the Fully Qualified Domain Name.

If there's more than one domain controller, then you would need to wait for this change to propagate to all the servers. Note that we are using the -S switch, which is available from Windows Server 2008. If you are using a previous version, use the – A switch after manually checking for duplicate SPNs defined in the domain.

setspn –S http/WebServer WebUser setspn –S http/WebServerFQDN WebUser

Example:

setspn -S http/webserver domain\appooluser setspn -S http/webserver.domain.com domain\appooluser

setspn –S MSOLAPSvc.3/ASServer ASUser setspn –S MSOLAPSvc.3/ASServerFQDN ASUser

Named instance

Where InstanceName is the name of the example:

setspn –S MSOLAPSvc.3/ASServer:InstanceName ASUser setspn –S MSOLAPSvc.3/ASServerFQDN:InstanceName ASUser

You may also need to set up an SPN for the SQL Browser Service.

setspn –S MSSQLSvc/SQLServer:1433 SQLUser setspn –S MSSQLSvc/SQLServerDQDN:1433 SQLUser

Where 1433 would be replaced with the proper SQL Server port number

If the server has an alias, if the alias is an ANAME alias, you should add the SPNs for the name that users will type in. If it is a CNAME alias, then you must also add the SPNs for the machine name, as the browser may use those when requesting the Kerberos ticket.

Now that the SPNs are set, you need to enable delegation for the service account and application pool users. This is done in Active Directory Users and Computers.

If you are running Windows 2012 server or higher, you will also need to run the command in PowerShell. You will need to be a domain administrator on the domain controller.

$user1 = Get-ADUser -Identity WebUser Set-ADUser ASUser -PrincipalsAllowedToDelegateToAccount $user1 Set-ADUser SQLUser -PrincipalsAllowedToDelegateToAccount $user1

Please note in this case, you shouldn't include the domain for WebUser, SQLUser, or ASUser.

After making changes and running the Delegation setup, run an IISReset before testing and restart Internet Explorer on the client machine.

In IIS Manager, right-click Windows Authentication under the authentication section and choose providers. Make sure Negotiate is listed before NTLM. Kerberos may or may not be needed depending on the network setup.

You may need to disable Enable Kernel-mode authentication. Right-click Windows Authentication under the Authentication and select Advanced Settings. If Delegation doesn't work initially, try toggling this setting (with an IISReset).

With Enable Kernel-mode authentication is disabled, you may face problems publishing from the Excel client, if so, re-enable it.

If you need iPhone/iPad access either via Safari or Anaplan XL Mobile, you need to add a configuration profile to enable single-sign on for the device. This can optionally include a list of application ids. When you register the website in Anaplan XL Mobile, enter the URL, and then leave "Requires Logon" off, authentication will be handled automatically.

To enable SSO, create text file with an extension of .mobileconfig. Copy the following into it and modify as needed:

<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple/DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd%22> <plist version="1.0"> <dict> <key>PayloadContent</key> <array> <dict> <key>PayloadDisplayName</key> <string>SSO Settings</string> <key>PayloadType</key> <string>com.apple.sso</string> <key>PayloadVersion</key> <integer>1</integer> <key>PayloadUUID</key> <string>XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX</string> <key>PayloadIdentifier</key> <string>com.YOURCOMPANY.sso</string> <key>Name</key> <string>FluenceXLWeb SSO</string> <key>Kerberos</key> <dict> <key>Realm</key> <string>YOURDOMAIN</string> <key>URLPrefixMatches</key> <array> <string>HTTP://YOURSERVER</string> </array> </dict> </dict> </array> <key>PayloadOrganization</key> <string>YOURCOMPANY</string> <key>PayloadDisplayName</key> <string>Single Sign-On Profile</string> <key>PayloadVersion</key> <integer>1</integer> <key>PayloadUUID</key> <string>YYYYYYYY-YYYY-YYYY-YYYY-YYYYYYYYYYYY</string> <key>PayloadIdentifier</key> <string>com.YOURCOMPANY.sso.profile</string> <key>PayloadDescription</key> <string>Enables Kerberos Authentication</string> <key>PayloadType</key> <string>Configuration</string> </dict> </plist>

You should replace the following values as appropriate:

XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX - generate a guid (https://www.guidgenerator.com/online-guid-generator.aspx) YYYYYYYY-YYYY-YYYY-YYYY-YYYYYYYYYYYY - generate another guid YOURCOMPANY - You company name with no spaces or punctuation YOURDOMAIN - your Fully qualified domain name YOURSERVER - The url as entered into the web browser/mobile app

At the same level as the Realm key you can optionally add the following to limit access to Safari/AnaplanXL Mobile:

<key>AppIdentifierMatches</key> <array> <string>com.apple.mobilesafari</string> <string>com.xlcubed.mobile</string> </array>

You can then email the profile to the users, they can then open and install the profile. During the installation process they need to confirm the details and enter a "realm", this would be their user-id. It can be left blank for them to be prompted for that each time.

Anaplan XL doesn't need to do anything. The browser and the different servers handle Delegation before Anaplan XL Web starts processing user requests.

Microsoft has a tool available to test that Delegation has been correctly configured.

There's also a Kerberos website you can install. It needs to be set up to copy the exact configuration and can then be used to check the configuration. It'll also provide options to fix any problems it finds.

Some browsers that aren't Internet Explorer can use Kerberos. Here are some tips to help. If you can't get it working, then you need to use Internet Explorer. You can also set up Dual Authentication for access to remote clients.

You would need to add all the servers involved in the process to the "White List", this is done via the shortcut for the browser:

"C:\Program Files\Google\Chrome\Application\chrome.exe" --auth-server-whitelist="ASServer,WebServer,SQLServer" --auth-negotiate-delegate-whitelist="ASServer,WebServer,SQLServer"

Or by updating the registry.
